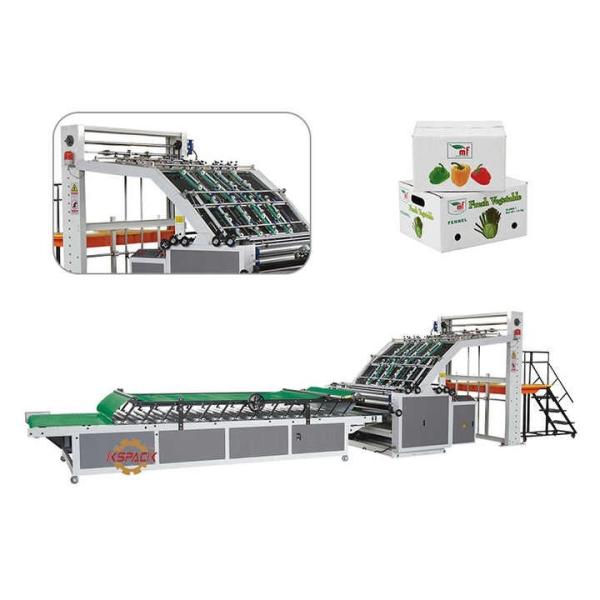

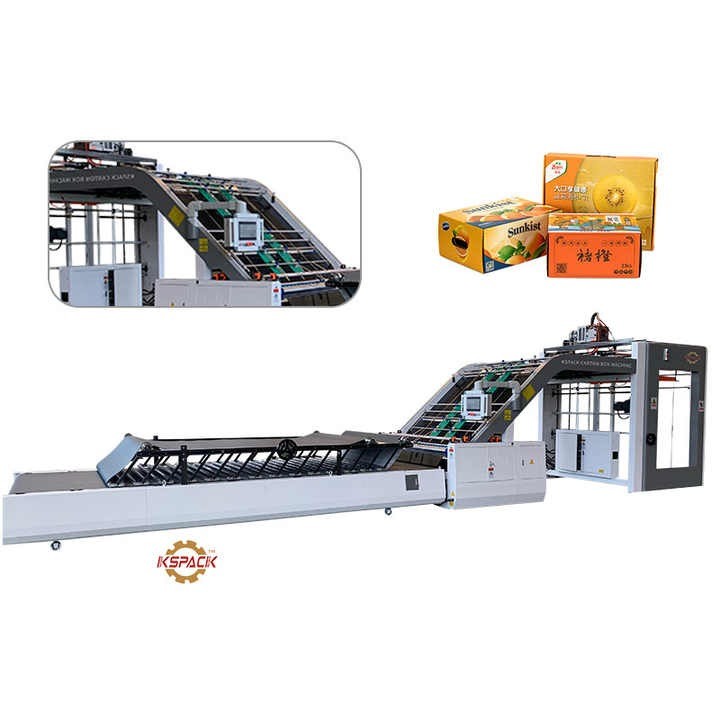

High Speed Corrugated Flute Laminator Machine A/B/E 1 3 5 Ply Flute Laminating Machine
1.Corrugated Cardboard Flute Laminator Machine Description:
Our precision suction paper floating feed model has an incredibly accurate running balance. With the help of a high-tech photoelectric control system, our machine can ensure that every sheet of paper is fed accurately and accurately. This avoids any single leaf movement, which can occur when the sheets are fed too quickly or unevenly.
The innovative forward thrust position of our machine helps to reduce the error range to within 1.0mm. This means that you can achieve an even better quality finish when gluing, and you can be confident that the machine is working efficiently. The fit error range of corrugated paper is well controlled to within 1.5mm, which helps to ensure that the gluing image is clear and accurate. This is particularly important for jobs that require high-quality printing, such as advertising and packaging. With the innovative forward push position, you can achieve even higher accuracy when gluing corrugated paper.
In addition to these features, our machine is equipped with 20 thick wall panels, which can withstand a pressure of up to 40 thick. This means that the machine is durable and can withstand repeated use, and it will not be easily damaged. This ensures that your machine will last for many years to come, and you can be confident that you will get great value for your investment.
2.Machine Technical Parameter:
| Specifications | JGFM-B1300 | JGFM-B1450 | JGFM-B1600 |
| Maximum Cladding Size | 1400*1300mm | 1400*1450mm | 1400*1600mm |
| Minimum Cladding Size | 350*350mm | 350*350mm | 350*350mm |
| Max Design Speed | 90pics/min | 90pics/min | 90pics/min |
| Power | 7kw | 7kw | 7kw |
| Dimensions(mm) | 8800*2200*1700 | 8800*2350*1700 | 8800*2500*1700 |
| The Total Weight | 3T | 3.3T | 3.6T |
3. Machine Function:
In conclusion, this device is user friendly and easy to maintain. Simply lift the bridge plate to clean the components below, which makes cleaning a breeze. With an intermittent water cycle cleaning system, it is easy to clean the equipment while still keeping it functional.
The front position is designed with a flexible mechanism, which ensures that the backing paper does not lead and provides a smooth and accurate transfer process. In addition, the backing paper can be adjusted before and after the laminating process, allowing precise and accurate results every time.
Suitable for cardboard and A/B/C/E/F and double corrugated cardboard and corrugated and corrugated materials over 350 grams by weight.
Intelligent flattening control, up to power saving and paper folding distance control.
